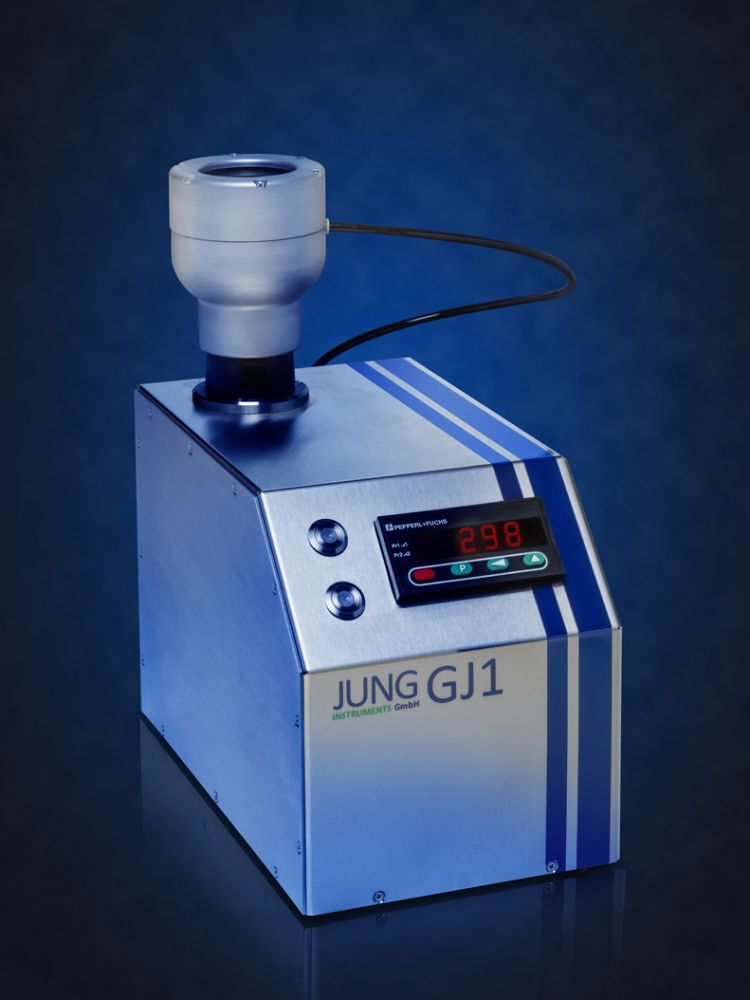

With the GJ1 Gas Permeability Tester, you can reliably determine the gas permeability of green sand test specimens in accordance with VDG guidelines. Gas permeability is a key parameter in molding sand testing, as it indicates how effectively gases can escape from the mold during the casting process. This helps ensure stable molding conditions and supports consistent casting quality.
Measuring Range
Maximum Load: 1200 N/cm²
Bending Strength: 2400 N/cm²
Compressive Strength: 61 N/cm²
Splitting Strength: 45 N/cm²
Shear Strength: 45 N/cm²
Double Shear Strength: 30 N/cm²
Test Speed
 1 mm/min – 300 mm/min
Measurement Accuracy
1% FS
Dimensions
220 × 180 × 310 mm (H × W × D)
Weight
24 kg
Option
Data Transfer Interface
The GJ1 accurately measures the gas permeability of standard test specimens by passing a defined airflow through the sample. Automatic calibration compensates for changes in air pressure and temperature, ensuring reliable and reproducible results. Measurement values are displayed digitally for clear and precise readings.
